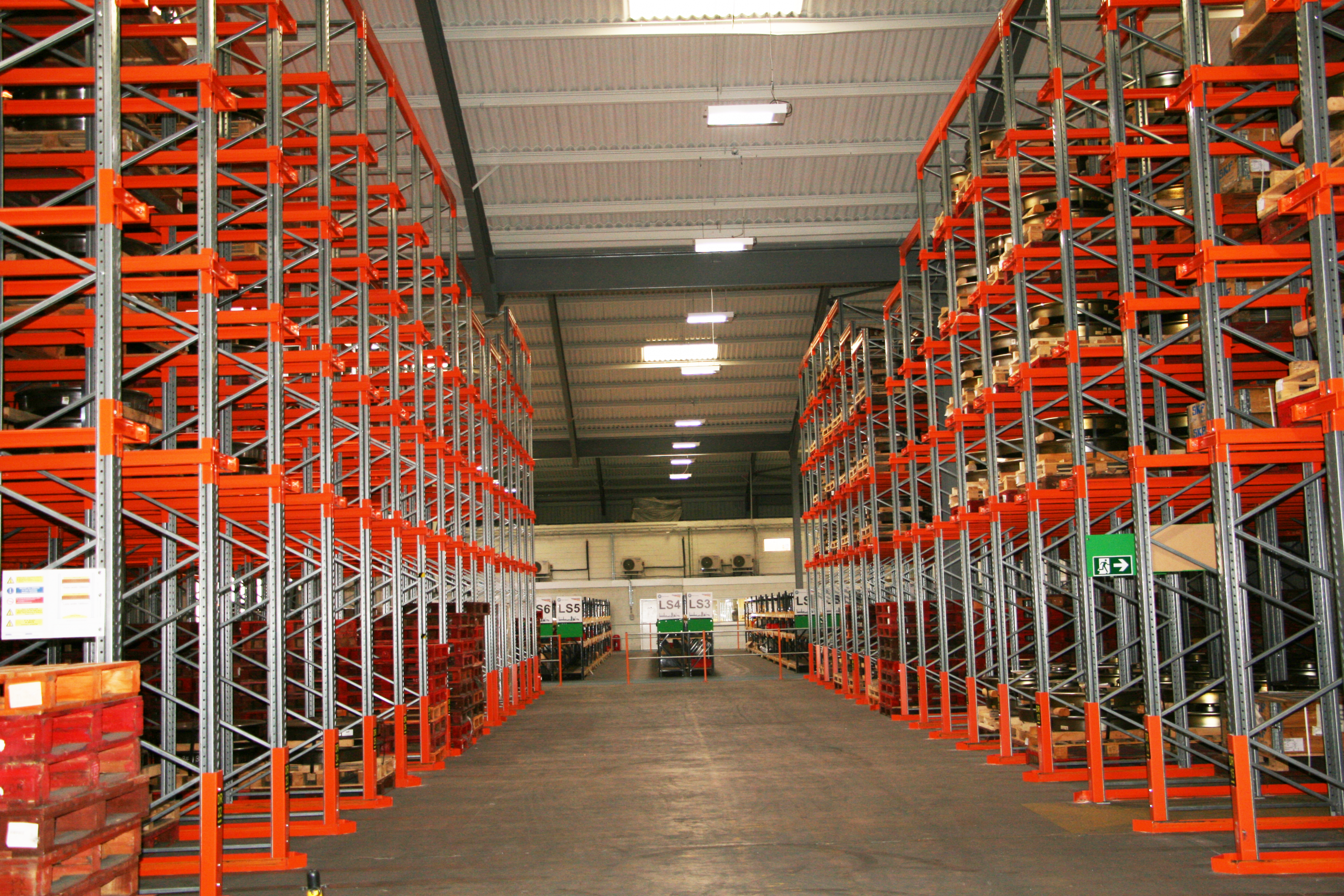

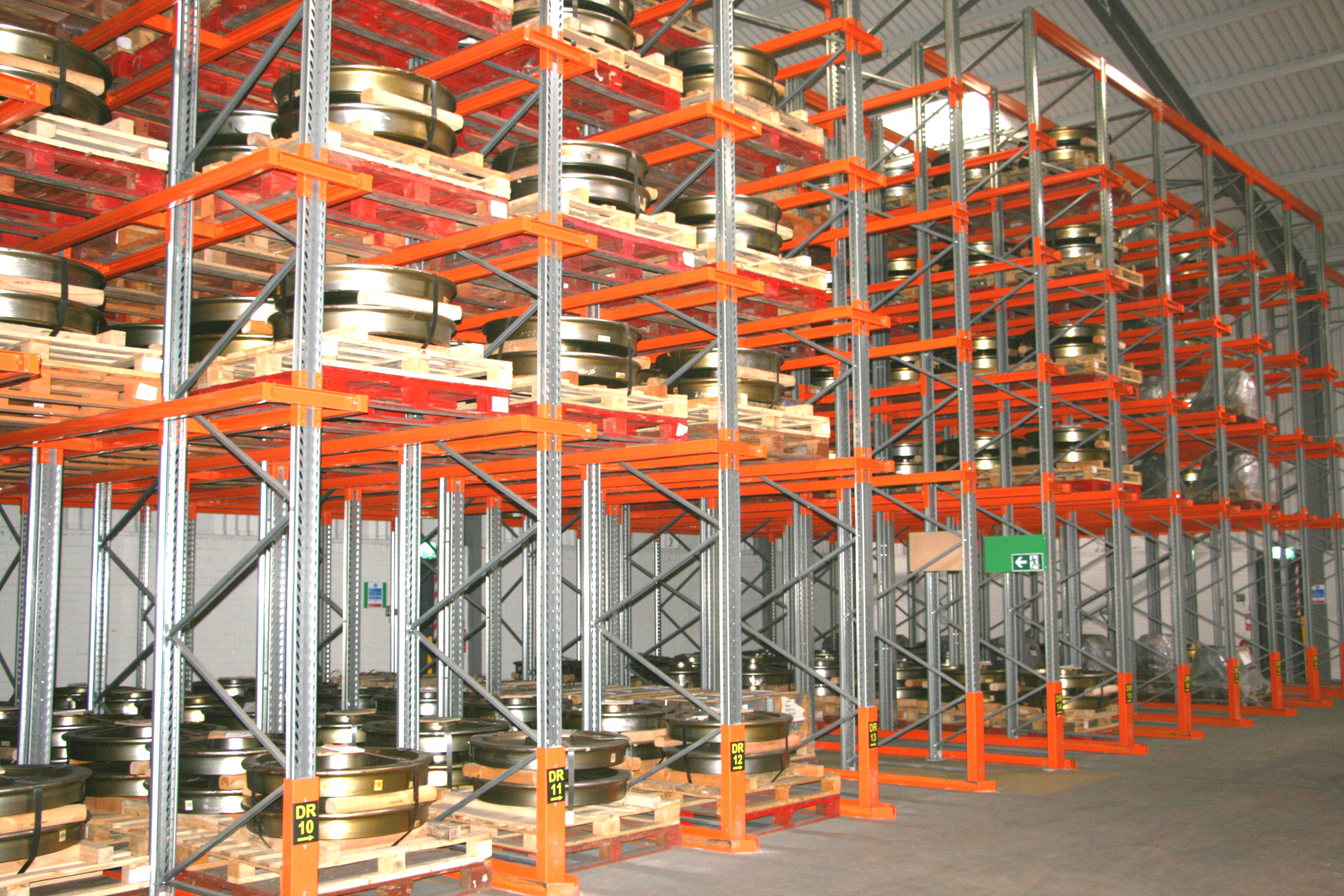

Drive In Racking

Overview of Drive In Racking

This system uses minimal space for access aisles and lanes. Ideally suited for large volumes of the same product. In general the first pallet put into the rack is the last out so it is not good for stock rotation. The racking uses conventional APR uprights although generally of a higher specification which then  support runners that support the pallets

Features of Drive In Racking

[ultimate_icon_list icon_size=”10″ icon_margin=”5″][ultimate_icon_list_item icon=”Defaults-check”]High stock density[/ultimate_icon_list_item][ultimate_icon_list_item icon=”Defaults-check”]Ideal for cold rooms[/ultimate_icon_list_item][ultimate_icon_list_item icon=”Defaults-check”]Ideal when high volumes of the same SKU are needed to be stored[/ultimate_icon_list_item][/ultimate_icon_list]

Specifications of Drive In Racking

[ultimate_icon_list icon_size=”10″ icon_margin=”5″][/ultimate_icon_list]

Uses of Drive In Racking

Drive In Racking is particularly suited to the storage of very large quantities of the same product as pallets cannot be safely blocked stacked, for maximum storage capacity, using the minimum amount of space.

Drawbacks of Drive In Racking

The down fall to this system means you have limited stock rotation and order picking selectivity. You have to unload and load the system in a sequence making picking slower than other pallet racking systems.

Conventional forklift trucks which can drive into the racks are used for picking and replenishment. Although immediate access to every product is not possible, drive-in racking plays a major role.

Drive in racking can also be used as drive-through racking which means both sides of the racking can be used, if the racking unit is freestanding.

[ultimate_icon_list icon_size=”10″ icon_margin=”5″][ultimate_icon_list_item icon=”Defaults-check”]Bad for stock rotation[/ultimate_icon_list_item][ultimate_icon_list_item icon=”Defaults-check”]Needs constant good housekeeping to maintain optimisation of the warehouse space[/ultimate_icon_list_item][ultimate_icon_list_item icon=”Defaults-check”]Prone to rack damage caused by fork lift trucks[/ultimate_icon_list_item][ultimate_icon_list_item icon=”Defaults-check”]Pallets need to be of very high quality[/ultimate_icon_list_item][/ultimate_icon_list]

Cost & capacity of Drive In Racking

We aim here to give a very crude comparison chart of the effectiveness of this system when benchmarked against a fully block stacked warehouse. The benchmark in each category is 100. The higher the number the more expensive so a rating of 200 would indicate the total cost being twice as much as the block stacking. The bench mark for effective utilisation is the counterbalance option. This is a subjective view and is really only given as a very rough guide.

[ultimate_icon_list icon_size=”10″ icon_margin=”5″][ultimate_icon_list_item icon=”Defaults-check”]Initial cost: 459[/ultimate_icon_list_item][ultimate_icon_list_item icon=”Defaults-check”]Typical 5 year cost: 137[/ultimate_icon_list_item][ultimate_icon_list_item icon=”Defaults-check”]Effective utilisation: 75[/ultimate_icon_list_item][/ultimate_icon_list]
